ARC SYSTEMS

Overview

​

• The ARC series is a line of emergency ventilation and air filtration systems designed for filtering the air from dangerous gases and particles, and maintaining the overpressure in the gas tight shelter required for protection from contaminated air outside.

• The ARC series was developed by Arconik for use in residential shelters, small bunkers, safe rooms and other protected spaces.​

• The systems are tested, and all their components are certified for compliance with technical requirements of SI 4570 standard (Air ventilation and filtration systems for shelter and protected spaces).

• The systems were approved for use by Civil Defence Command and installed in tens of thousands of shelters around the world.

• Standard ARC system kit includes – blast valve, prefilter, electric blower, manual backup (optional), CBRN filter, air duct and hoses, noise silencer, overpressure valve/s.

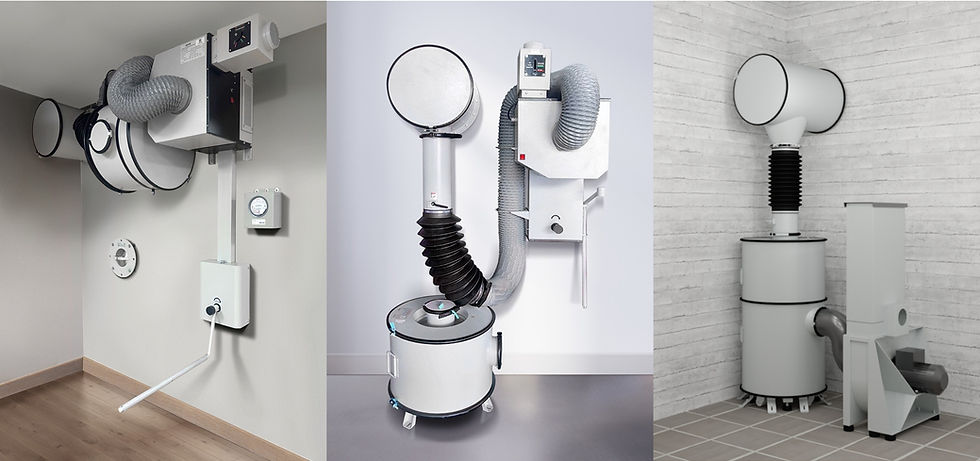

• The ARC systems models ARC 100, ARC 180, ARC 240, ARC 300, ARC 450 and ARC 600 have versions for floor and wall installations (what allows efficiently to maximize the floor space).

• Simple Installation in new structures with pre-installed (cast in concrete) wall sleeves with 8-inch flanges or retrofit installation on existing walls with retrofit 8-inch flanges connected to the wall with concrete anchors.

• Ready for use withing minutes and can be operated by one person.

• The electric blower fan can be operated with 230 or 115 VAC. Additionally a manual backup device is available in versions up to 600 m3/h airflow for insuring continued operation of the system also in case of electric outage.
